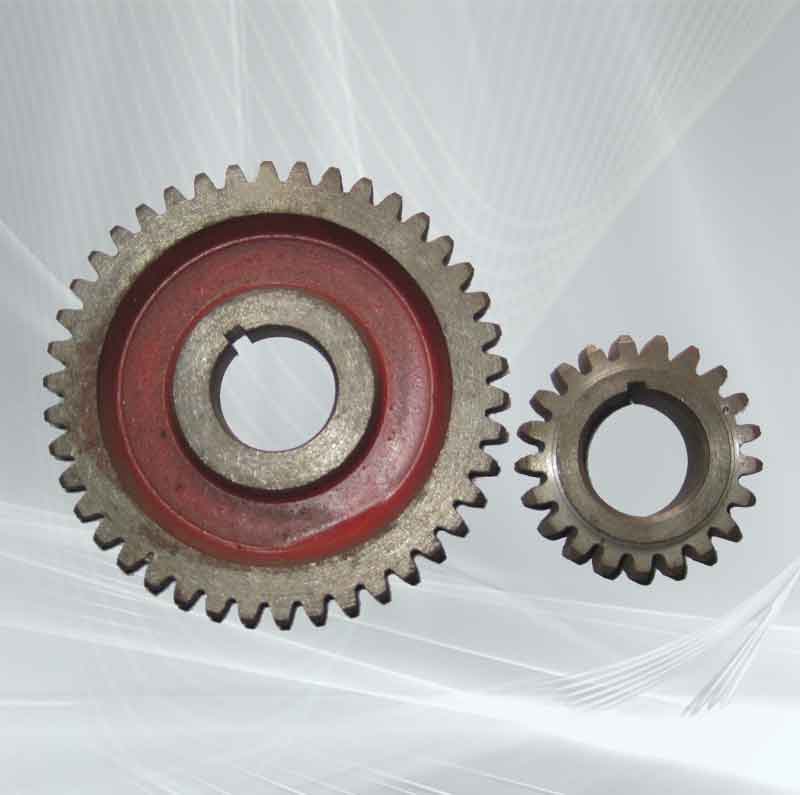

MK-12 Crank Gear

MK 12 Crank Gear used in high speed engine. This product material is cast-iron. For high accuracy, CNC turning center use for machining. We can supply this product in high quantity with quality. We are using higher accuracy gear shaper for teeth cutting of this product. Approx Dimension values for Reference only given below.

Technical Specifications › MK-12 Crank Gear

Parameters	Approx. Values for Reference Only
Outer Diameter ø (OD)	41.22 mm
Inner Diameter/Bore	20.30 mm
Face Width	13 mm
No. of Teeth	21 Teeth
Weight	140 Gms.
Available in Raw Material	Cast Iron Casting (CI Casting)
